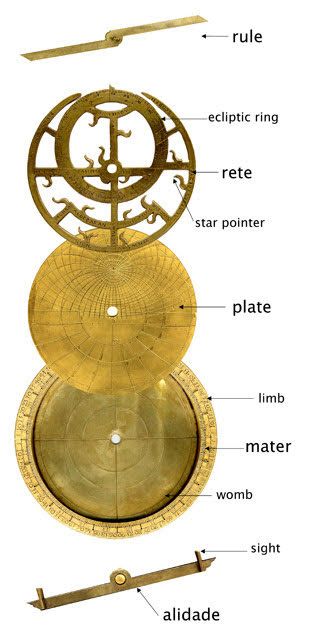

The Parts of an Astrolabe

The astrolabe is a portable astronomical calculating instrument. It can be used to perform all sorts of complex calculations using the position of the Sun or stars.

Permission to reproduce Whipple Museum images is dependent on the full acceptance of the terms and conditions detailed below.

We require all persons/institutions ordering images or requesting reproduction rights to sign a licence indicating agreement to these terms. The licence must be signed and returned and the fee paid in full before images can be dispatched. Permission will automatically be withdrawn should the terms be infringed.

Rights for use and reproduction of images must be applied for separately.

Use of images: Terms and conditions

  1. Permission is granted to the recipient [name] for the use of the following images for research purposes, or personal non-commercial use only, as specified: [specified images; specified use]
  2. Photographs will only be dispatched once payment has been received in full.
  3. The supply of a photograph does not carry with it the right to reproduce it in any form. A separate application must be made for reproduction rights and an additional reproduction fee paid.
  4. The recipient named above is not permitted to lend, circulate or otherwise distribute a copy of any material to any other individual, company or organisation.
  5. The Whipple Museum would appreciate a copy of any research specifically related to objects within its collection.

Reproduction of images: Terms and conditions

  1. Reproduction of items in the Museum collections from photographs other than those supplied by the Museum is strictly prohibited.
  2. Permission to reproduce is subject to all fees being paid in full. The fee payable, covers only the specific occasion detailed on the original application. The rights granted are non-exclusive. All reprints, further editions, or use of photographic material, separation film or printing plates, other than for the purpose, for which permission is granted, necessitates a new application to the Museum and payment of a further fee. The permission granted and the fee paid covers only one reproduction of the image in the product. The multiple use of an image is subject to an additional fee.
  3. Copyright in all photographs (as defined in the Copyright Act 1956 and the Copyright, Designs and Patents Act 1988) remains the property of the Museum. The Museum requires that any publication right created by the publication of previously unpublished, out of copyright material be assigned back to the Museum.
  4. All reproductions must be credited "Whipple Museum of the History of Science, University of Cambridge". This right is asserted in accordance with sections 77 & 78 of the Copyright, Designs and Patents Act 1988.
  5. All objects depicted in images must be identified in the text of the publication by name and Museum accession number (in the form "Wh.0000", where 0000 is the accession number of the object).
  6. No photograph supplied for publication may be stored in a digital archive, nor be duplicated for further use. Once the publication has been finalised, any digital images that have been supplied must be deleted.
  7. No manipulation of the image, other than for colour correction, is allowed without prior approval and based on the submission of artwork detailing the proposed changes.
  8. Where a reproduction fee is waived at the discretion of the Director, the Museum requires that a copy of the publication be sent for its reference library.

Additional terms and conditions apply for reproduction in multimedia products, which are available on request.

Mater

The mater (Latin for mother) is the main body of the astrolabe. The edge of the mater is called the limb, on which are the degree scale and scale of hours are engraved. The hollowed-out part of the mater is called the womb and contains the latitude plates.

Plate

To an observer on the Earth it appears that our planet is at the centre of an immense sphere with the stars and other heavenly bodies located on its inside surface. Called the celestial sphere, it appears to rotate around the Earth.

The celestial sphere is mapped on the plate of an astrolabe using a mathematical technique called stereographic projection. This technique allows the 3-dimensional sphere to be represented on the 2-dimensional flat plate. Each latitude needs its own projection, and so most astrolabes come with a variety of plates for particular latitudes. usually stacked one on top of the other, within the astrolabe.

Rete

This cut-out plate (sometimes called the star-net) carries the star pointers and ecliptic ring and can be rotated over the latitude plates underneath.

  • Star pointers: The star pointers mark the location of particular stars, which are often labelled on the rete. As the rete is turned astrolabe the star pointers mark out the position of these stars against the background of the celestial sphere, which is engraved on the latitude plate underneath, visible through the cut-out sections of the rete.
  • Ecliptic ring: The ecliptic ring is the annual path of the Sun through the sky, as seen from the Earth. A belt extending around 6 degrees north and south of the ecliptic is called the Zodiac. Within this belt the apparent motions of the Sun and planets take place. The Zodiac is divided into 30-degree intervals giving us the 12 months of the zodiacal calendar.

Rule

The rule is a bar which rotates across the front of the astrolabe and is used to locate positions on the plate or rete, and to relate them to the scale of hours marked on the limb.

Alidade

The alidade is a rotating bar, found on the back of an astrolabe. Unlike the rule the alidade has little vanes with pin-holes or slots at each end which are used as sights. Altitude is measured by lining up an object, such as a star, in the two sighting holes, and then reading off the altitude in degrees on a scale around the edge.
